=>protractor type 0931x-A
0931x-A model

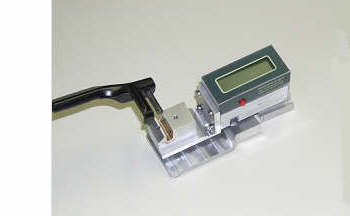

This model is built from the module measurement+display 04096-A to which one we adapted a support intended to receive adapters. Adapters depend on the model of arm. The model described opposite is intended for the arms of typical windscreen wipers bayonet.
Model 09311-A: Angle measurement device at height 20mm with noze module delivered with standard adapters and a spacer for measurement at height 30mm. _________________________________________________________________
This model is built from the module measurement+display 04096-A to which one we adapted a support intended to receive adapters. Adapters depend on the model of arm. The model described opposite is intended for the arms of typical windscreen wipers bayonet.
Model 09311-A: Angle measurement device at height 20mm with noze module delivered with standard adapters and a spacer for measurement at height 30mm.
Model 09312–A: Angle measurement device at height 30mm with noze module delivered with standard adapters and adaptable for measurement at height 20mm.
Adapter for bayonnet end arm
To take measurements, place the adapter under the shaft, then put the shaft of the wiper in the adapter. The shaft is kept in place by two spring balls.
___________________________________________________________________
To take measurements, place the adapter under the shaft, then put the shaft of the wiper in the adapter. The shaft is kept in place by two spring balls.
___________________________________________________________________

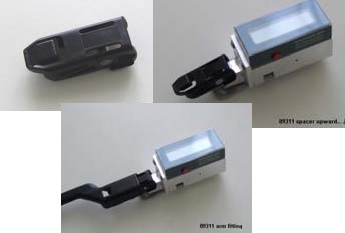

Adapter for top connexion arm
To take measurements, clip the adapter on the device, then push the wiper tip on the adapter.
___________________________________________________________________
To take measurements, clip the adapter on the device, then push the wiper tip on the adapter.
___________________________________________________________________
