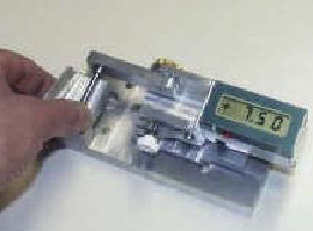

Angle measurement device 04090-A

Measurement and displaying part intended to be combined with a measure taking module ( a clip, a nose or any other module produced by the customer ). This body is the base for 0939x-A and 0931x-A models. The front face (which the nose or clip module gets fixed on) has four holes M3 set in square at distance of 20 mm and four holes 3mm H7 set in cross at distance of 20mm.
  • Measures angle between wiper arm and windshield.
  • Stand alone device.
  • No need to zero search : direct display of value at power on.
  • Angle values between –15° and +15°.
  • Display by step of 0.05°.
  • Precision 0.3° +/- 1 step.
  • Supply : two button batteries 3V 950mA-h type 2477.
  • Duration of use without changing batteries: 700 hours
  • Weight lower than 300 grams.
  • Must be connected to a noze module or clip module


______________________________________________________________________________________________________




Separate parts for protractors

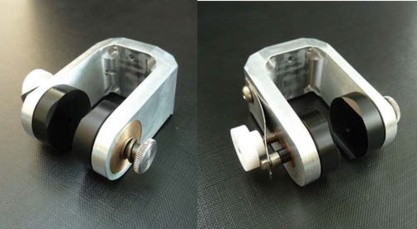

Clip module (for lateral measurement taking)

09390-A: Clip module to be mounted on 04090-A, delivered with standard adapters and corresponding sole.

Tip adapters available for 09390-A (for use with a clip module):
  • adapters for non-curved tips
  • adapters for arm tips with connector
  • adapter for top connexion


______________________________________________________________________________________________________


Separate parts for protractors

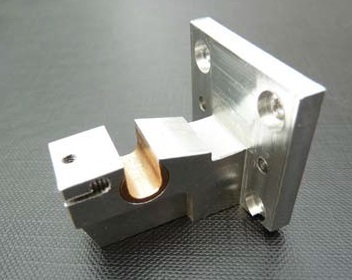

Nose Module (for flat blade and bayonet)

09310-A: Noze module to be mounted on 04090-A, delivered with corresponding sole and 16 and 19 mm adapters.


______________________________________________________________________________________________________




Separate parts for protractors
Calibration set for 09391-A / 09392-A / 09311-A / 09312-A

Calibration set with angles of  –15°, -7.5°, 0°, 7.5° , 15°
